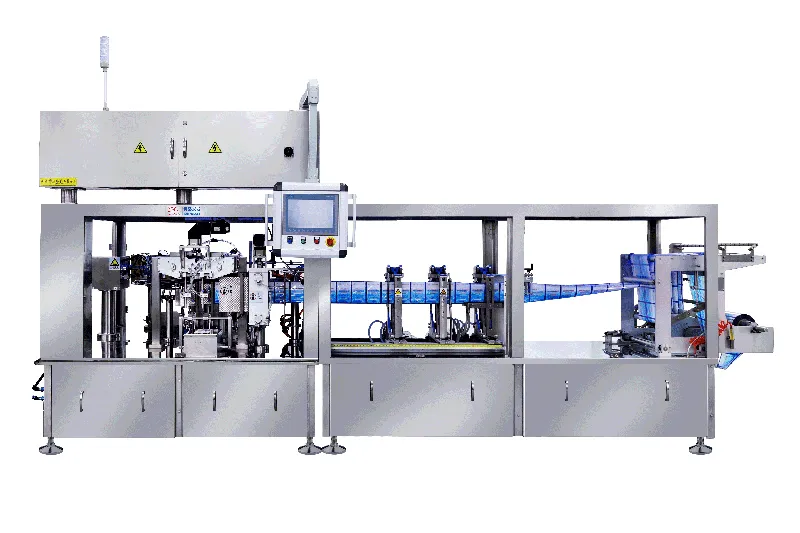

Integrated Roll-Film Bagging & Filling Machine, YL-140/190
Horizontal Form Fill & Seal
- Independent Mechanical Grippers
- Rapid format changeovers via touch screen
- Packaging speed up to 100 pouches per min
- Applicable to flat bag, stand-up bag, zipper bag and various bags
- Suitable for sauces, granules, and other various materials
Specifications
| Model | ||
| Capacity | 50 - 90 pouches/min | 50 - 70 pouches/min |
| Pouch size | Length: 100 - 240mm; Width: 80 - 140mm | Length: 100 - 300mm; Width: 100 - 190mm |
| Packing weight | Max. weight 1kg | Max. weight 1kg |
| Sealing method | Heat seal | Heat seal |
| Power consumption | 13.5kW | 14kW |
| Power supply | 3-phase AC380V，50/60Hz | 3-phase AC380V，50/60Hz |
| Compressed air | 0.6 - 0.7mpa，1.5m³/min | 0.6 - 0.7mpa，1.5m³/min |
| Machine weight | 5800kg | 6300kg |
| Pouch style | Flat pouch, stand-up pouch, zipper pouch | Flat pouch, stand-up pouch, zipper pouch |
| Machine dimensions | Length: 6100mm; Width: 2000mm; Height: 1530mm | Length: 6600mm; Width: 2500mm; Height: 1580mm |
Working Process
- Film Unwinding
- Bag Making
- Vision Inspection
- Pouch Forming
- Automatic Packaging
- Finished Product Output
Founded in 1996, Yilong is an experienced manufacturer of flexible packaging machinery, specializing in premade pouch packaging, HFFS and VFFS systems, and spout pouch filling and capping equipment. With 30 years of experience and more than 5,000 global clients, our packaging machines are widely used for food, pet food, and daily chemicals. Beyond individual machines, we provide customized comprehensive packaging line solutions to suit your unique product characteristics and facility layout.
