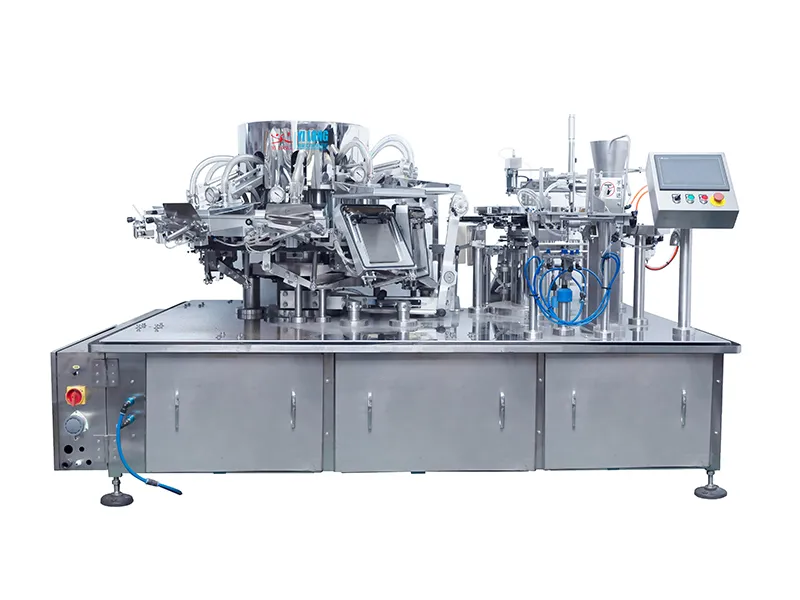

Automatic Rotary Vacuum Packing Machine, YL-R190S
Premade Pouch Filling and Sealing
The YL-R190S rotary premade pouch vacuum packaging machine is ideal for products requiring flattening and shaping during the vacuum process, such as spiced peanuts, pickled chicken feet, and similar vacuum-sealed snacks.
Auxiliary Equipment

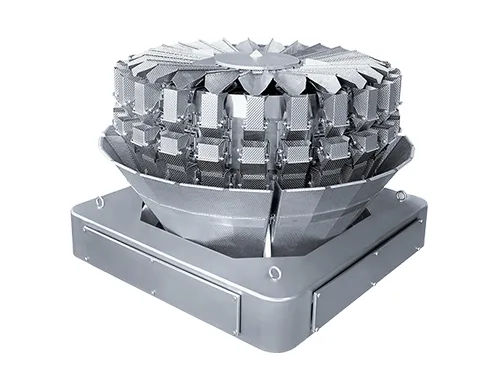

Multi-head weigher

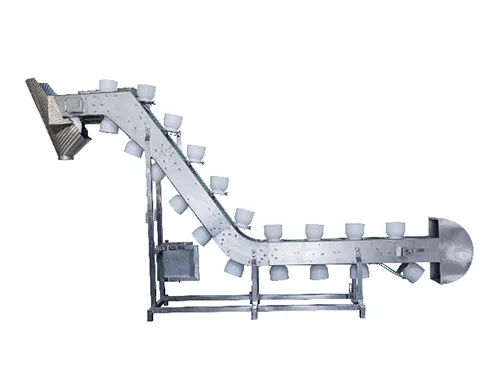

Bowl Elevator
Pouch Style

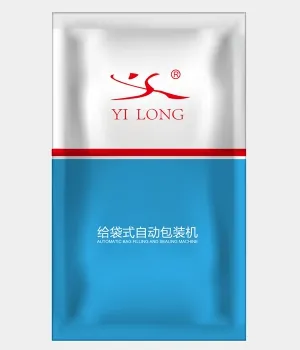

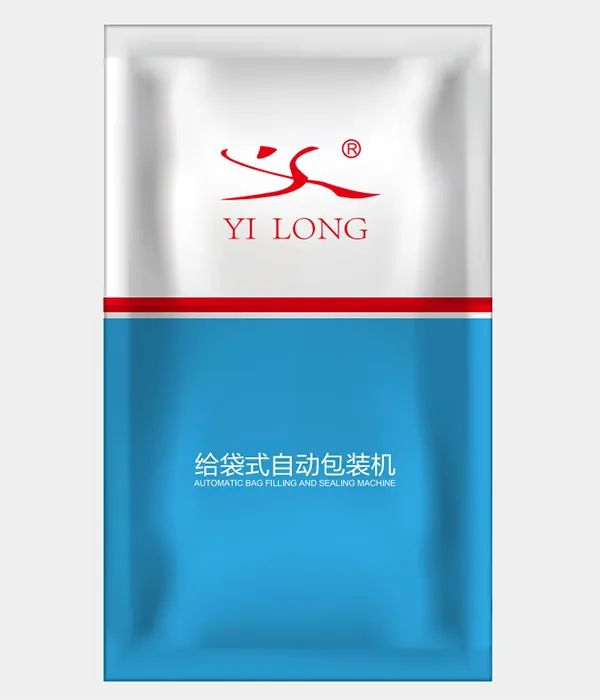

Flat Bag

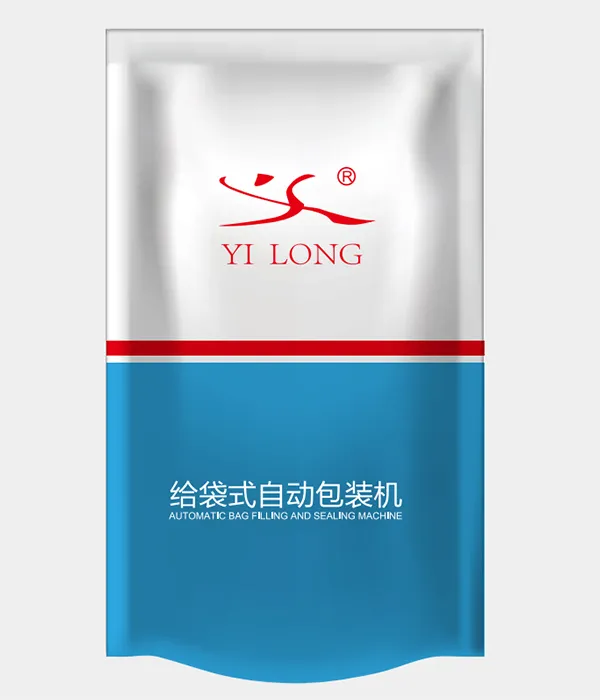

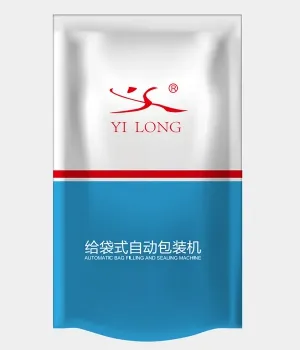

Stand-up Bag
Specifications
| Capacity | 30 - 50 pouches/min |
| Pouch size | Length: 100 - 285mm Width: 100 - 190mm |
| Packing weight | Max. weight 1kg |
| Sealing method | Instant heat seal |
| Power consumption | 11kW |
| Power supply | 3-phase 380V 50Hz |
| Compressed air | 6 - 8kgf/cm², 0.8m³/min |
| Machine weight | 3100kg |
| Pouch style | Flat pouch, stand - up bag |
| Machine dimensions | Regular bag feeding: Length 2570mm, Width 2100mm, Height 1450mm; Horizontal bag feeding: Length 2570mm, Width 2550mm, Height 1450mm |
Features
- Exceptional Stability
Utilizing globally proven mechanical cam-drive technology, the pouch packing equipment ensures rapid and stable operation with a low failure rate and minimal energy consumption. This robust design delivers exceptional durability and wear resistance for long-term industrial use. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings.
Founded in 1996, Yilong is an experienced manufacturer of flexible packaging machinery, specializing in premade pouch packaging, HFFS and VFFS systems, and spout pouch filling and capping equipment. With 30 years of experience and more than 5,000 global clients, our packaging machines are widely used for food, pet food, and daily chemicals. Beyond individual machines, we provide customized comprehensive packaging line solutions to suit your unique product characteristics and facility layout.
