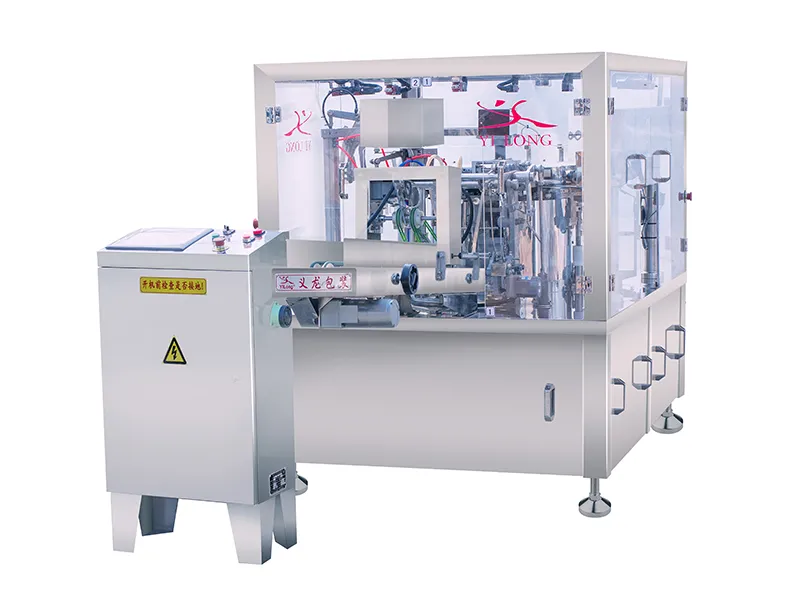

This rotary premade pouch packaging machine is a high-speed 10-station packaging equipment specially designed for zipper bags. Constructed from stainless steel or powder-coated machine body, with all product contact parts made of advanced stainless steel or other food-grade materials, the automatic pouch filler/sealer is designed to meet high hygienic standards and deliver outstanding corrosion resistance and a long service life. It offers exceptional versatility, allowing for seamless integration with various automatic weighers, dispensers and elevators.
Leave a Message
Pouch Style

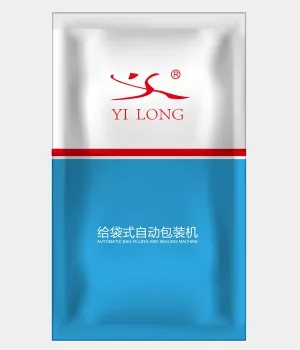

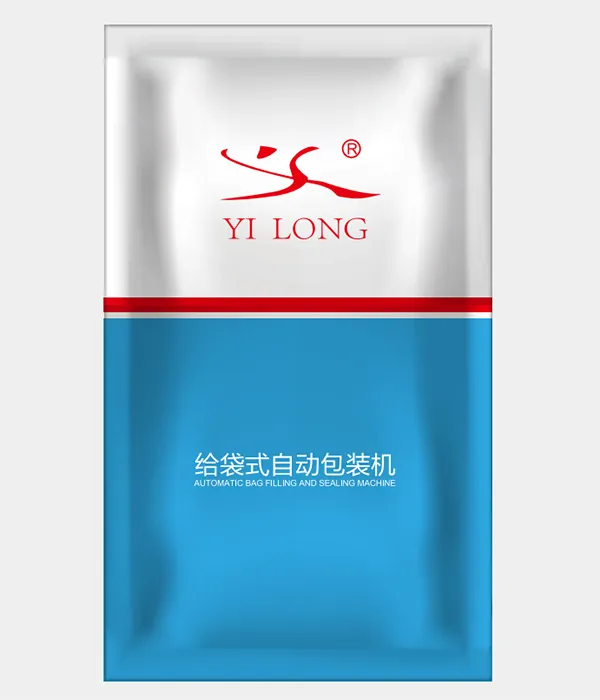

Flat Bag

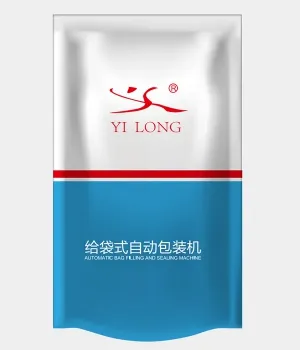

Stand-up Bag

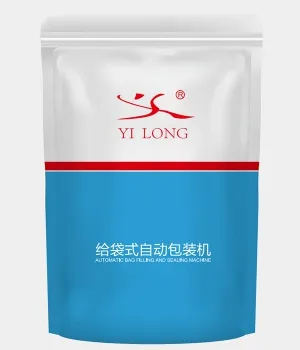

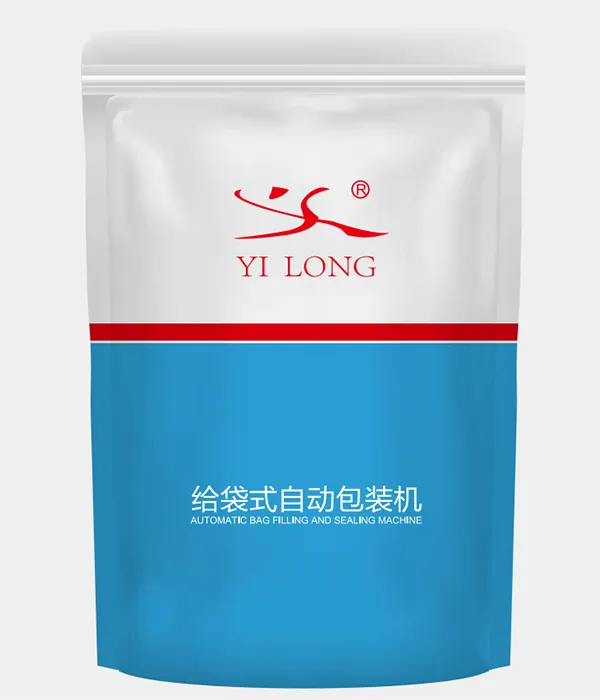

Zipper Bag

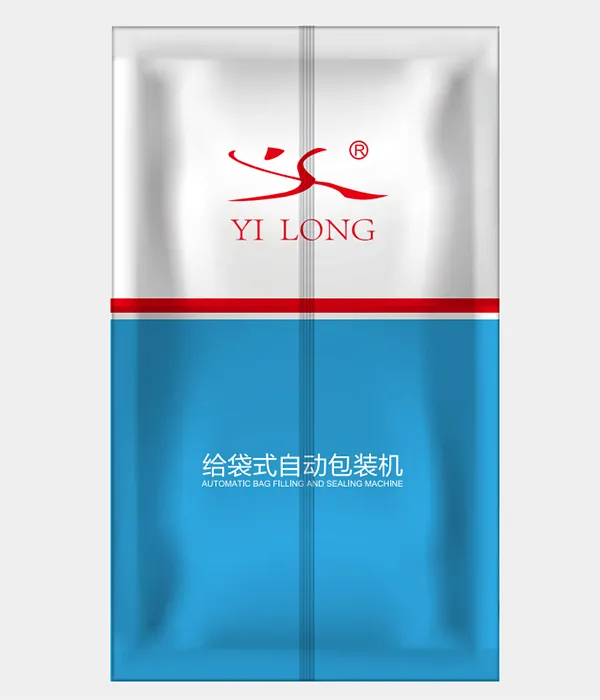

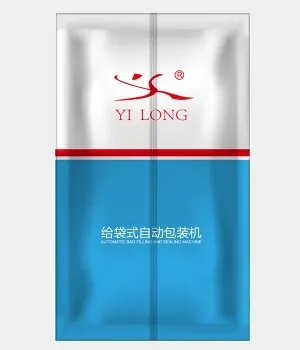

Back Seal Bag

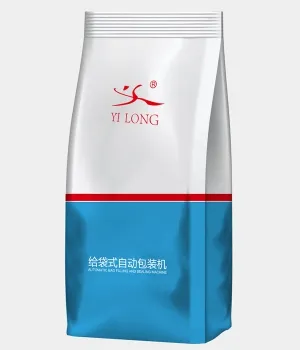

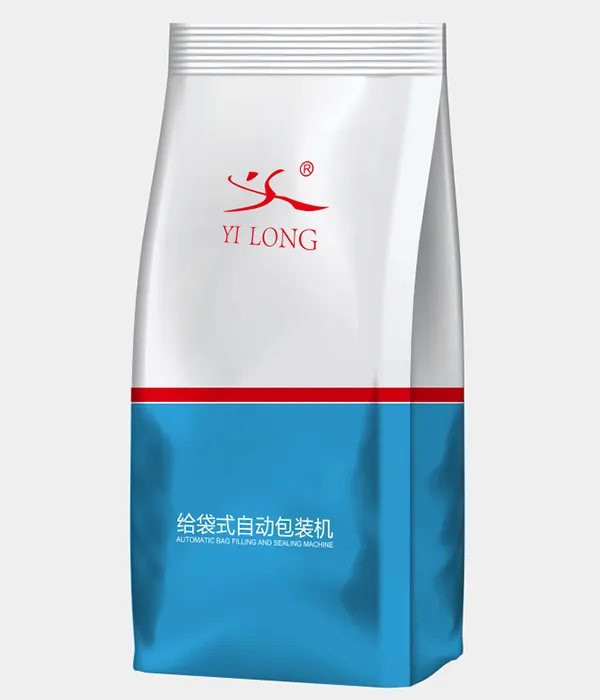

Flat Bottom Bag
Working Process
Bag feeding (giving bag)
Zipper opening & date coding (optional)
Pouch opening (top & bottom opening)
Product filling
Pouch cleaning & second filling (optional)
First heat sealing
Second heat sealing & cooling/forming
Discharge / finished product output
Specifications
Capacity(pouches/min)
30-60
Pouch size
Length: 100-300mm Width: 100-200mm
Packing weight
Max. weight 1kg
Sealing method
Heat seal
Power consumption
3.2kW
Power supply
3-phase 380V 50Hz
Compressed air
6-8kgf/cm² 0.8m³/min
Machine weight
1600kg
Pouch style
Flat Bag, Stand-up Bag, Zipper Bag, Back Seal Bag, Flat Bottom Bag)
Machine dimensions
Length: 2880mm Width: 1300mm Height: 1600mm
Features
Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life.
User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system.
Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste.
Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings.
Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance.
Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
