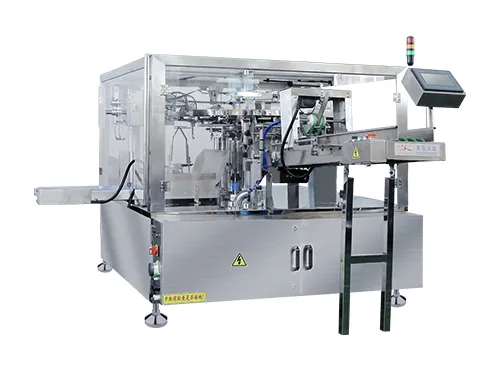

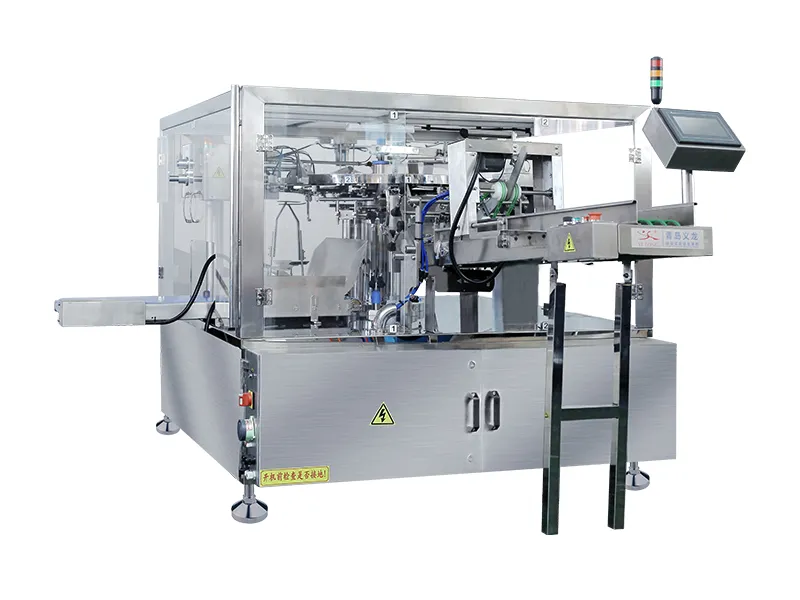

Large-Format Pouch Filling and Sealing Machine, YL-8SS(8SSZ)
Large Premade Pouches Filling & Sealing

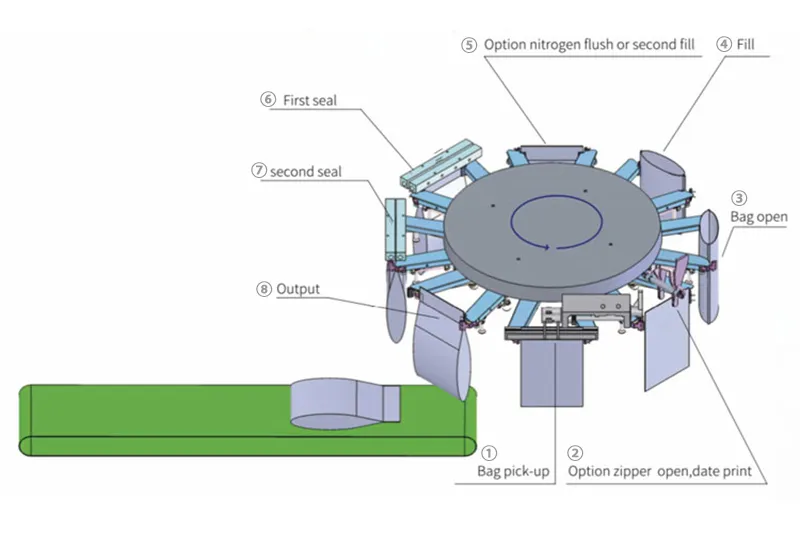

This automatic premade pouch filler sealer machine can integrate seamlessly with various weighing and dosing systems to handle both single and multi-material packaging requirements. To meet specific operational requirements, the automatic rotary pouch packing equipment supports advanced modules such as safety door emergency stop, automatic card dispensing, and rejection of non-conforming products. The entire process is fully automated, significantly boosting production throughput while minimizing labor and overhead expenses.

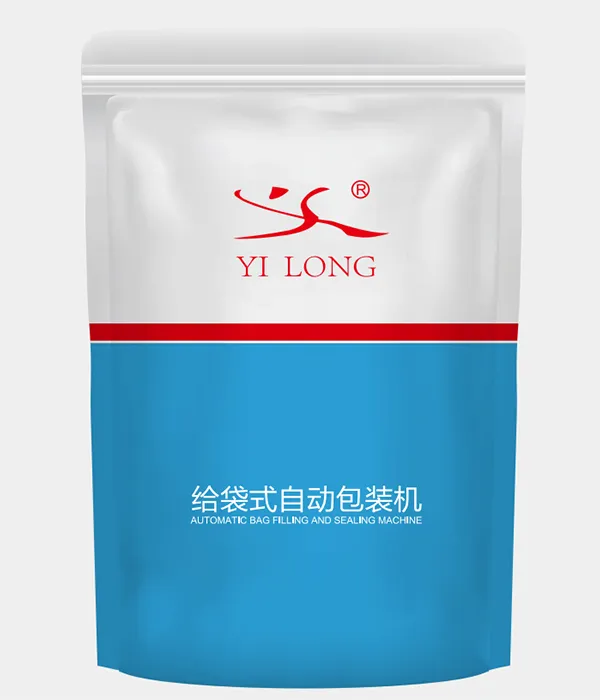

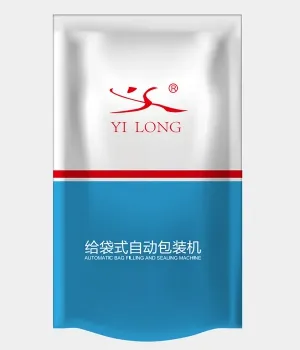

Pouch Style
Specifications
| Capacity(pouches/min) | |||
| Pouch size | Length: 140-380mm Width: 140-270mm | Length: 220-480mm Width: 200-305mm | Length: 220-480mm Width: 250-360mm |
| Packing weight | Max. weight 2.5kg | Max. weight 2.5kg | Max. weight 2.5kg |
| Sealing method | Heat seal | Heat seal | Heat seal |
| Power consumption | 3.8kW | 3.8kW | 3.8kW |
| Power supply | 3-phase 380V 50Hz | 3-phase 380V 50Hz | 3-phase 380V 50Hz |
| Compressed air | 6-8kgf/cm² 0.8m³/min | 6-8kgf/cm² 0.8m³/min | 0.8cm³/min |
| Machine weight | 1820kg | 1860kg | 1900kg |

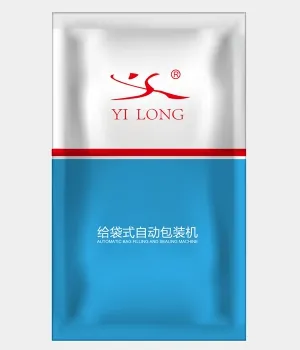

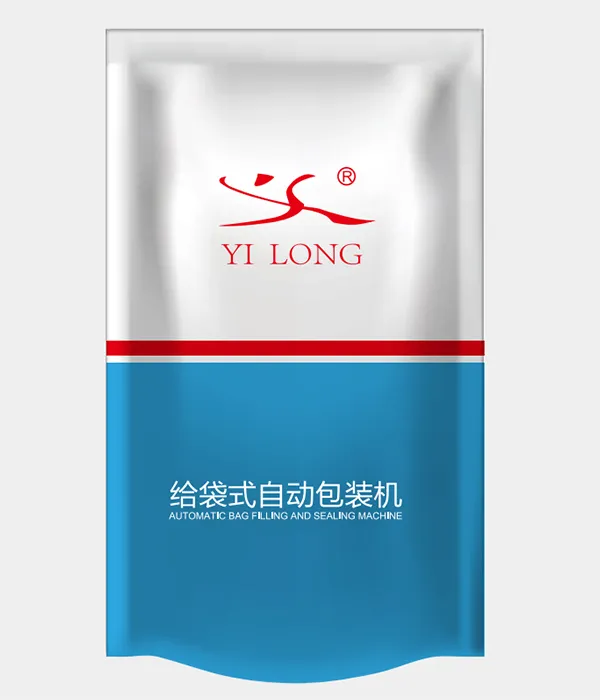

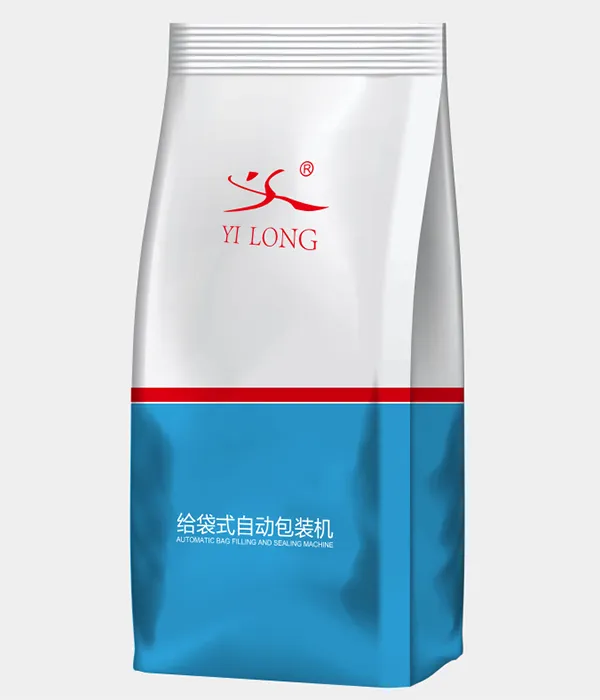

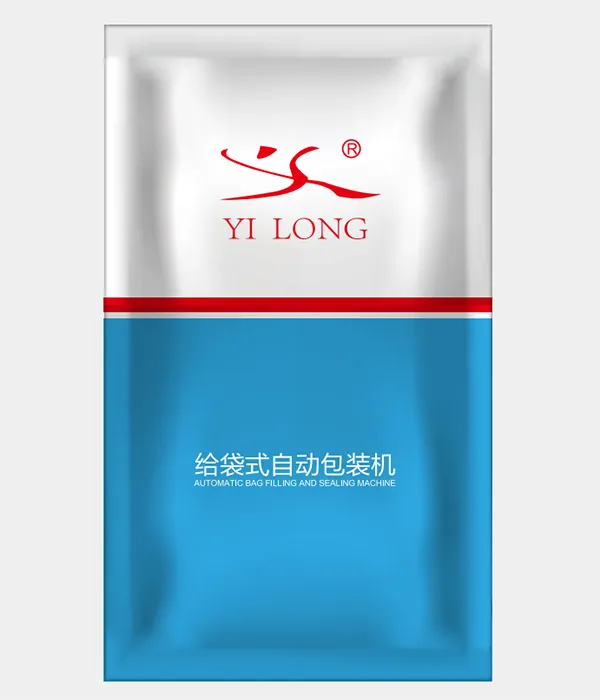

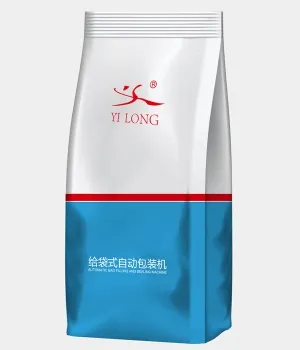

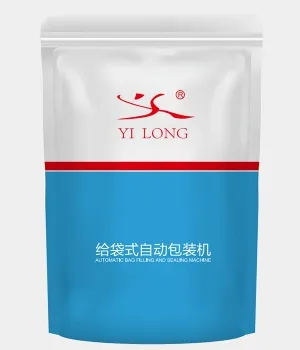

| Pouch style | Flat Bag, Stand-up Bag, Zipper Bag, Flat Bottom Bag | Flat Bag, Stand-up Bag | Flat Bag, Stand-up Bag |
| Machine dimensions | Length: 2800mm Width: 1871mm Height: 1500mm | Length: 2990mm Width: 1871mm Height: 1600mm | Length: 3150mm Width: 2000mm Height: 1720mm |
Features
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
Founded in 1996, Yilong is an experienced manufacturer of flexible packaging machinery, specializing in premade pouch packaging, HFFS and VFFS systems, and spout pouch filling and capping equipment. With 30 years of experience and more than 5,000 global clients, our packaging machines are widely used for food, pet food, and daily chemicals. Beyond individual machines, we provide customized comprehensive packaging line solutions to suit your unique product characteristics and facility layout.
