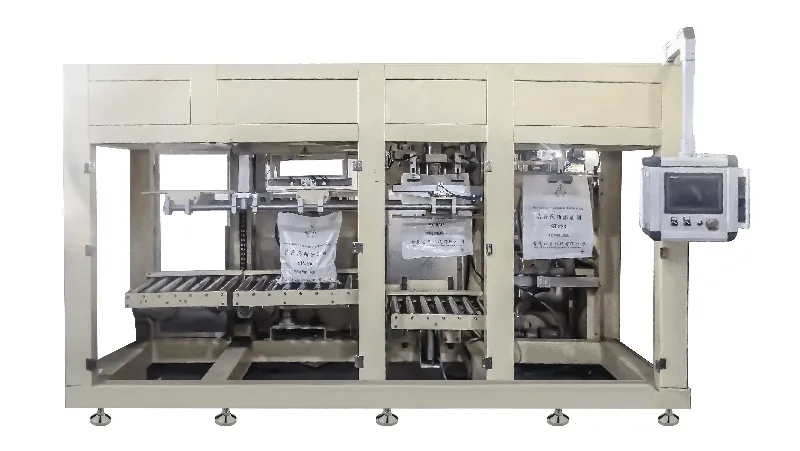

Heavy-Duty Vacuum Bagging Machine, YL-50
Automated Bag Uncuffer & Vacuum Sealer
Pouch Style

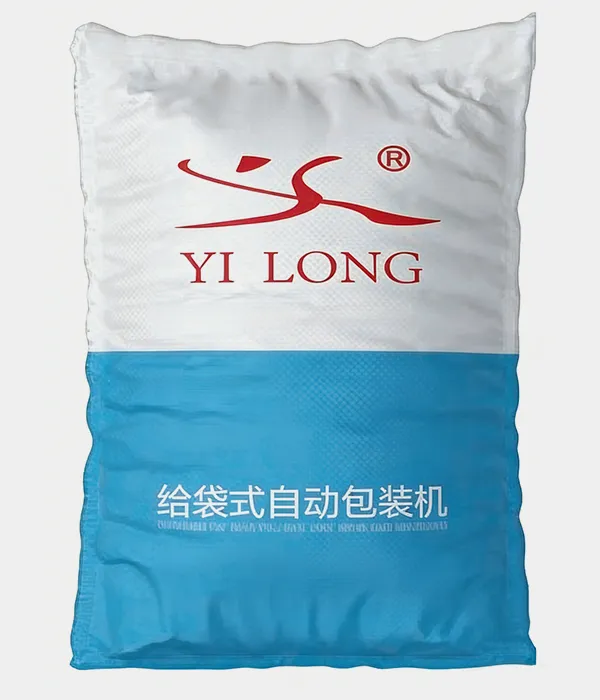

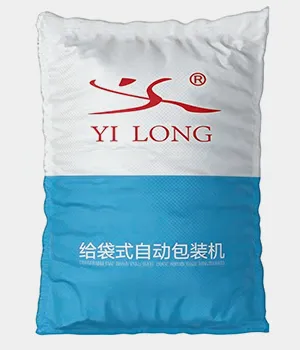

Stitching and Sewing Seal

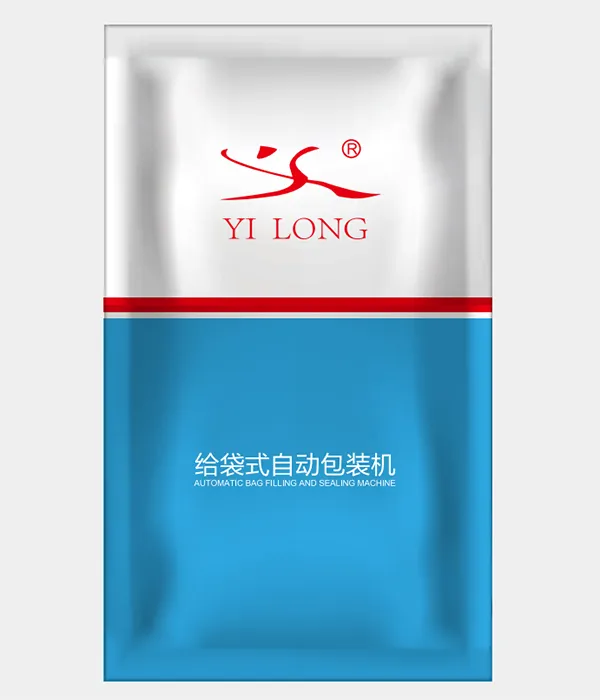

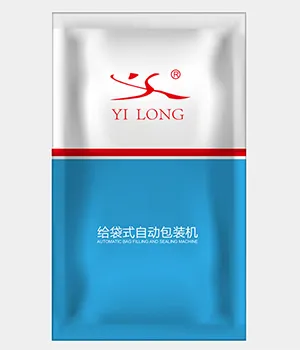

Heat Seal
Specifications
| Capacity | 5 - 20 pouches/min |
| Pouch size | Length: 500 - 1000mm; Width: 400 - 600mm |
| Packing weight | 10kg to 50kg |
| Sealing method | Stitching and sewing seal, heat seal |
| Power consumption | 10kW |
| Power supply | 3-phase 380V 50Hz |
| Compressed air | 6 - 8kgf/cm², 0.8m³/min |
| Pouch style | Woven bag / pp woven bag, kraft paper bag, nylon composite bag |
| Machine dimensions | Length: 4220mm; Width: 4860mm; Height: 2130mm |
Features
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
