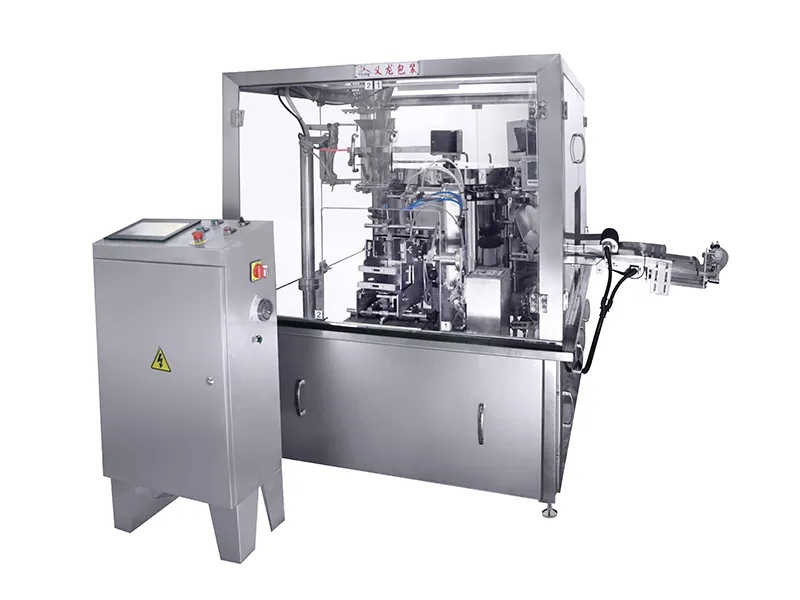

High-Speed Premade Pouch Packing Machine, YL-10SR
Auto-Packaging System for Flat & Stand-up Bags
The YL-10SR premade pouch packaging machine streamlines the entire automated packaging process, encompassing automatic dosing, seal integrity inspection, automated sorting and discharge, robotic tray loading, sterilization, tray unloading, and end-of-line case packing and palletizing.
Production Capacity: Single Lane: 20-50 pouches/min; Dual Lane: 50-90 pouches/min
Pouch Style

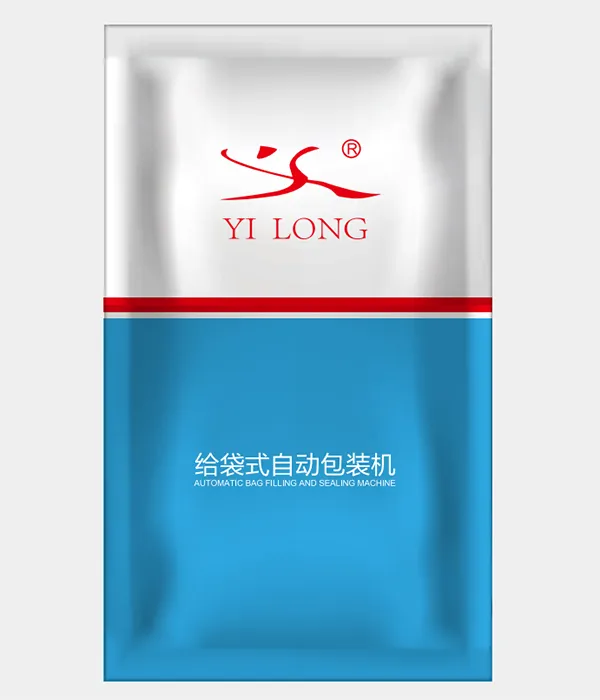

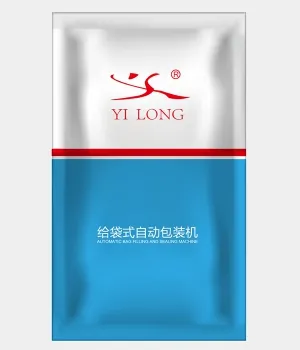

Flat Bag

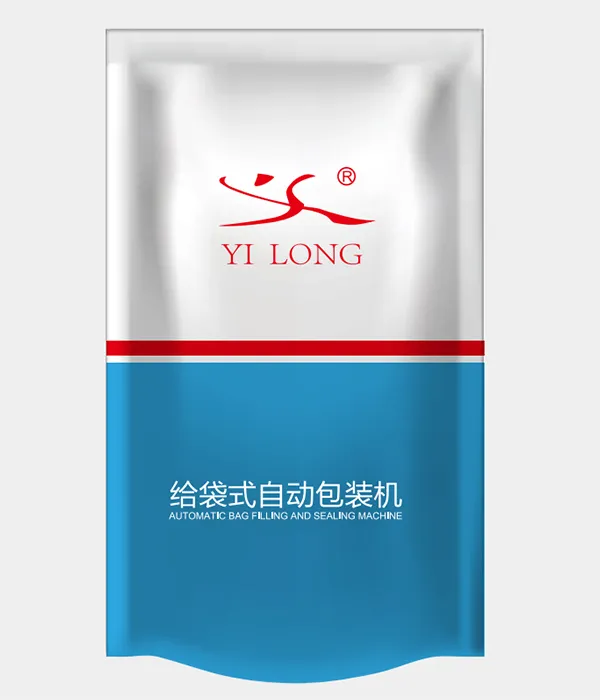

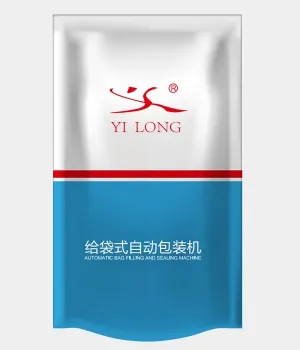

Stand-up Bag
Working Process
- Bag feeding (giving bag)
- Zipper opening & date coding (optional)
- Pouch opening (top & bottom opening)
- Product filling
- Pouch cleaning & second filling (optional)
- First heat sealing
- Second heat sealing & cooling/forming
- Discharge / finished product output
Specifications
| Capacity | Single lane: 20-50 pouches/min; Dual Lane: 40-90 pouches/min |
| Pouch size | Length: 100 - 300mm Width: 100 - 200mm |
| Packing weight | Max. weight 1kg |
| Sealing method | Heat seal |
| Power consumption | 3.2kW |
| Powder supply | 3-phase 380V 50Hz |
| Compressed air | 6-8kgf/cm², 0.8m³/min |
| Machine weight | 1400kg |
| Pouch style | Flat pouch, stand - up bag |
| Machine dimensions | Length: 1900mm Width: 1300mm Height: 1550mm |
Features
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
Founded in 1996, Yilong is an experienced manufacturer of flexible packaging machinery, specializing in premade pouch packaging, HFFS and VFFS systems, and spout pouch filling and capping equipment. With 30 years of experience and more than 5,000 global clients, our packaging machines are widely used for food, pet food, and daily chemicals. Beyond individual machines, we provide customized comprehensive packaging line solutions to suit your unique product characteristics and facility layout.
