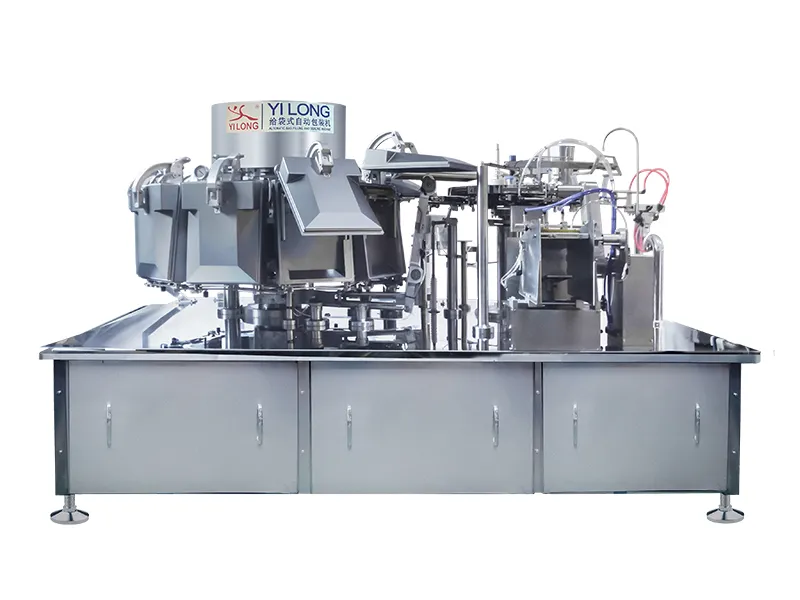

The YL-R190/220/260 vacuum sealed bagging machine is designed for large-format vacuum packaging of poultry and meat products, including braised chicken, roast duck, hams, and other bulk vacuum-sealed items.
Production Capacity: 10-50 pouches/min (depends on the size of bag)
Leave a Message
Auxiliary Equipment

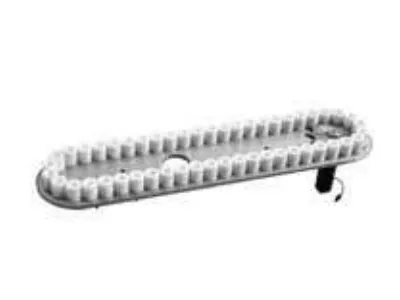

Rotary Cup Feeder

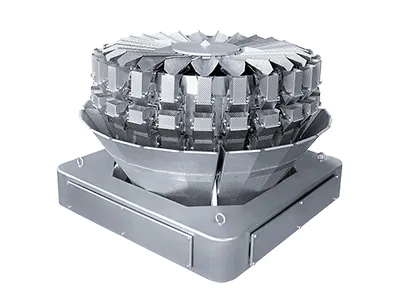

Multi-head Weigher

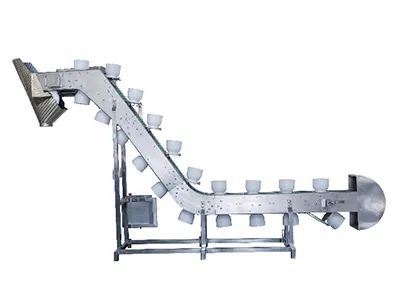

Bowel Elevator
Pouch Style

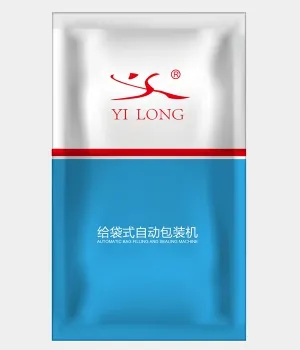

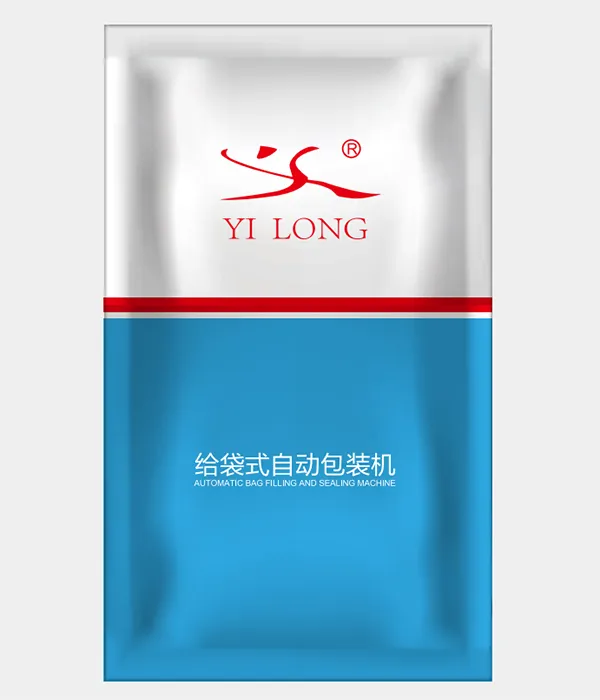

Flat Bag

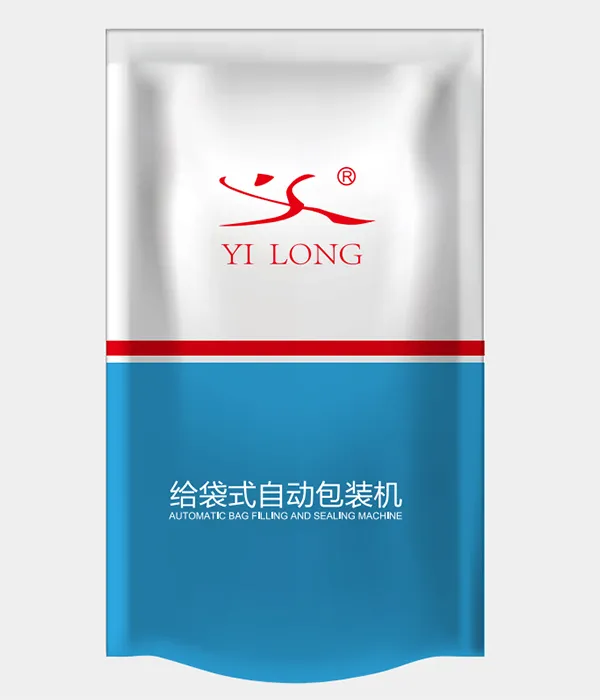

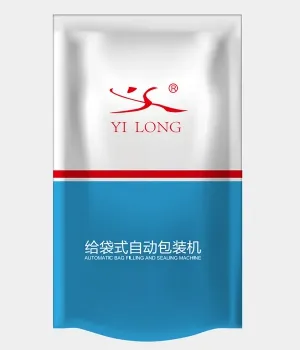

Stand-Up Bag

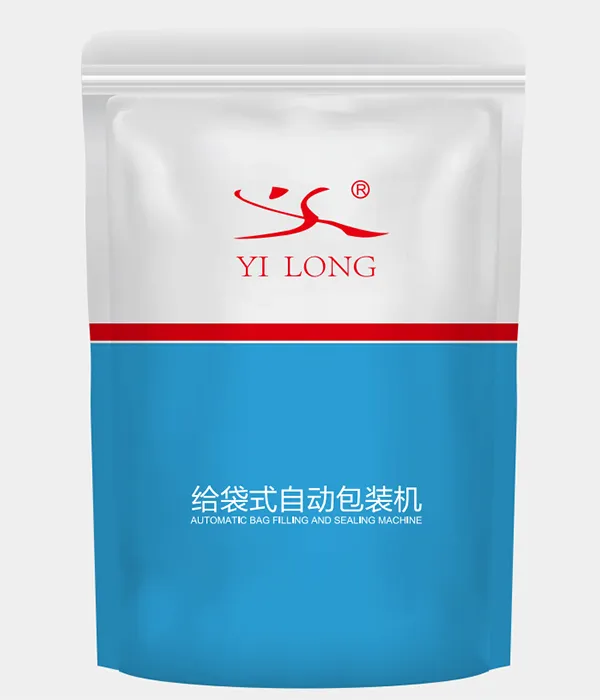

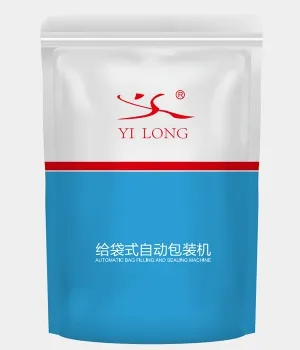

Zipper Bag
Specifications
Model
YL-R190
YL-R220
YL-R260
Capacity
30 - 50 pouches/min
30 - 50 pouches/min
10 - 30 pouches/min
Pouch size
Length: 100 - 285mm; Width: 100 - 190mm
Length: 100 - 300mm; Width: 130 - 220mm
Length: 200 - 390mm; Width: 160 - 260mm
Packing weight
Max. weight 1kg
Max. weight 1kg
Max. weight 1kg
Sealing method
Instant Heat Seal
Instant Heat Seal
Instant Heat Seal
Power consumption
11kW
11kW
11kW
Power supply
3-phase 380V 50Hz
3-phase 380V 50Hz
3-phase 380V 50Hz
Compressed air
6 - 8kgf/cm², 0.8cm³/min
6 - 8kgf/cm², 0.8cm³/min
6 - 8kgf/cm², 0.8cm³/min
Machine weight
3100kg
3300kg
3500kg
Pouch style
Flat pouch, stand-up pouch
Flat pouch, stand-up pouch
Flat pouch, stand-up pouch
Machine dimensions
Length: 2570mm; Width: 2100mm; Height: 1450mm
Length: 2580mm; Width: 2070mm; Height: 1560mm
Length: 2880mm; Width: 2200mm; Height: 1730mm
Features
Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life.
User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system.
Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste.
Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings.
Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance.
Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
Founded in 1996, Yilong is an experienced manufacturer of flexible packaging machinery, specializing in premade pouch packaging, HFFS and VFFS systems, and spout pouch filling and capping equipment. With 30 years of experience and more than 5,000 global clients, our packaging machines are widely used for food, pet food, and daily chemicals. Beyond individual machines, we provide customized comprehensive packaging line solutions to suit your unique product characteristics and facility layout.
